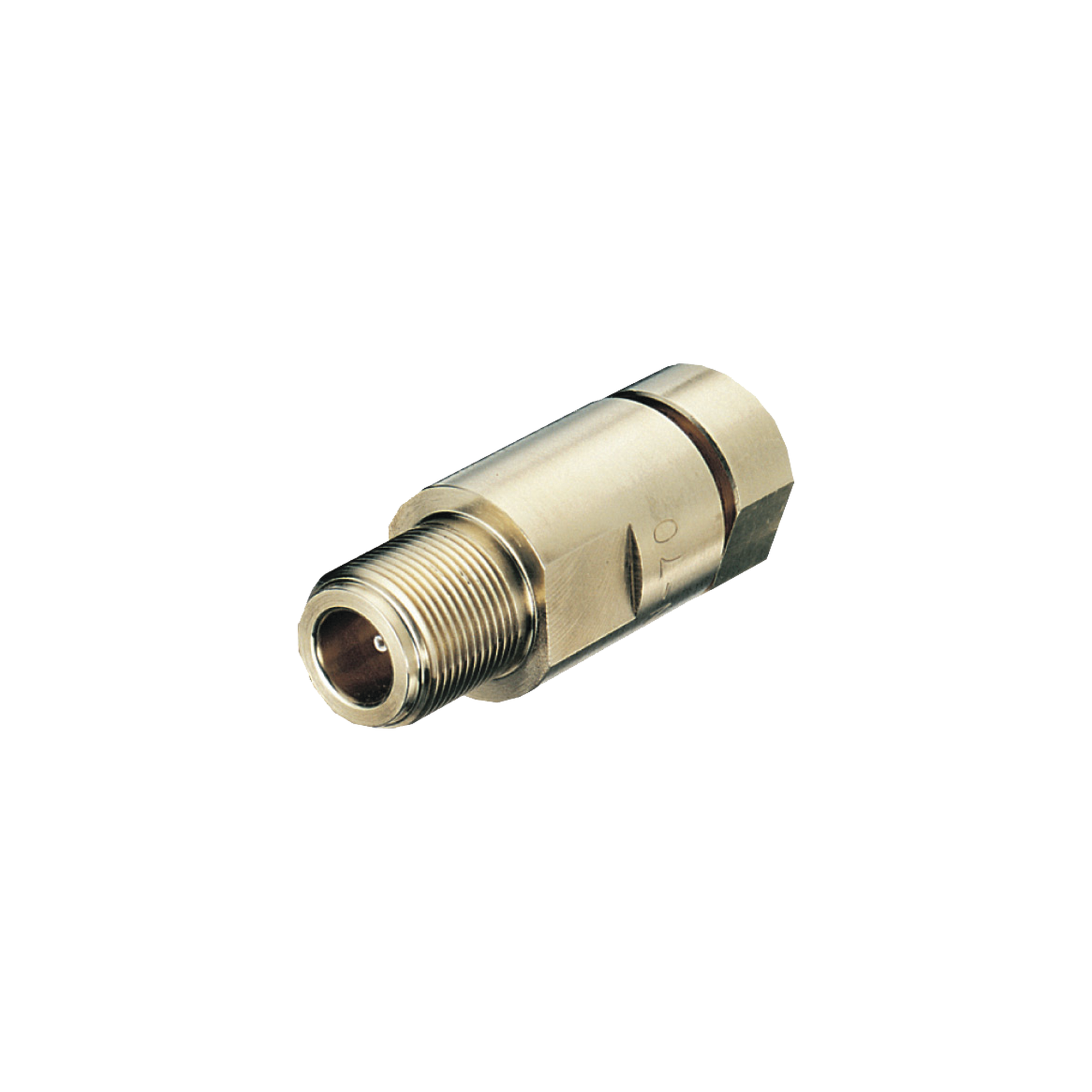

Type N Female for 1/2 in FSJ4-75A cable

ESTE PRODUCTO REQUIERE SOLICITUD PREVIA

SKU: F4-NF Category: Marca:

Description

General Specifications
  • Interface:   N Female
  • Body Style:   Straight
  • Brand:   HELIAX®
  • Mounting Angle:   Straight

Electrical Specifications
  • Connector Impedance:   70 ohm
  • Operating Frequency Band:   0 – 8400 MHz
  • Cable Impedance:   75 ohm


Dimensions
  • Nominal Size:   1/2 in
  • Diameter:   20.32 mm   |   0.80 in
  • Length:   53.34 mm   |   2.10 in
  • Weight:   64.00 g   |   0.14 lb
Environmental Specifications
  • Operating Temperature:   -55 °C to +85 °C (-67 °F to +185 °F)
  • Storage Temperature:   -55 °C to +85 °C (-67 °F to +185 °F)
