Luz LED electraray, para ubicaciónes peligrosas, UL y cUL , 120-240 Vca, ambar, parpadeo predeterminado

FEDERAL SIGNAL INDUSTRIAL

FEDERAL SIGNAL INDUSTRIAL – 225XL120240A – Luz LED electraray, para ubicaciónes peligrosas, UL y cUL , 120-240 Vca, ambar, parpadeo predeterminado

USD $731.30 CON IVA

Verifica disponibilidad

Descripción

FEATURES

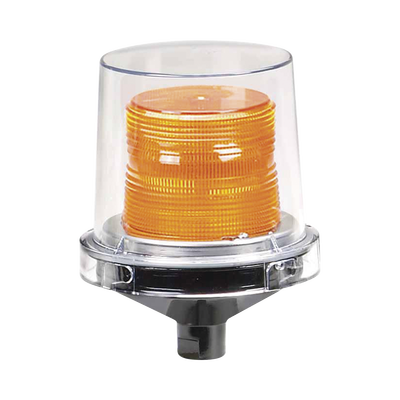

Model 225XL is a hazardous location flashing signal light that is available in 24VAC/DC and 120-240VAC self detecting voltage. Model 225XL comes standard in flashing mode and is field configurable to steady-burn mode for maximum functionality.
This hazardous location warning light has a black polyurethane-coated base and the inner fresnel lens. The clear polycarbonate outer dome can be quickly removed for access while changing the LED or inspecting the unit.
Model 225XL is ideal for wet, corrosive atmospheres like those found in food processing industries or anywhere a vibration-resistant visual signal is needed.


SPECIFICATIONS

Mount 1/2″ Pipe
Voltage 24VAC/VDC
  120VAC
  240VAC
Operating Current 0.40 Amps at 24VAC/DC
  0.21/0.12 Amps at 120-240VAC
In-Rush Current 1.75 Amps, 5.0mS, at 24VAC/DC
  2.0 Amps, 0.25mS, at 120-240VAC
Light Source/Lamp Style LED Array
Lamp Life 50,000 Hours
Flash Rate/Minute 60
Operating Temperature Minimum -58 °F
Operating Temperature Maximum 150 °F
Enclosure Rating Type 4X
Ingress Protection (IP) IP66
  IP69K compliant
Dome Colors Amber
  Blue
  Clear
  Green
  Red
Height 7.500 in
Diameter 5.500 in
Net Weight 3.20 lb
Shipping Weight 4 lb
