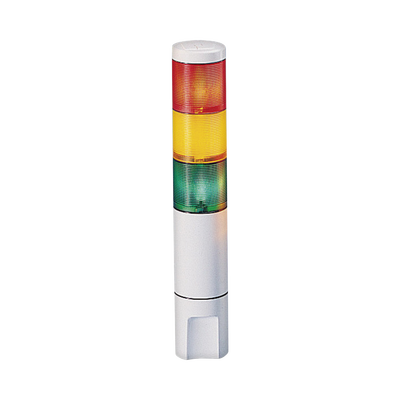

Indicador de estado LED MicroStat, 3 niveles, UL y cUL, 120Vca, rojo, ámbar, verde

FEDERAL SIGNAL INDUSTRIAL

FEDERAL SIGNAL INDUSTRIAL – MSL3L120RAG – Indicador de estado LED MicroStat, 3 niveles, UL y cUL, 120Vca, rojo, ámbar, verde

USD $688.56 CON IVA

Disponible

* Verifica disponibilidad: Producto con alto movimiento en almacen.

Descripción

FEATURES

Federal Signal’s MicroStat® is a compact, Type 4X status indicator, Type 1 with optional sounder. Ideal for OEM applications, the MicroStat comes pre-assembled as 1-, 2-, 3-, 4-, or 5-high light units. The user selects combinations from five colors: Amber, Blue, Clear, Green and Red. O-rings between each segment provide a water-tight and dust-tight seal. The base of each light can be surface or pipe mounted (3/4-inch NPT).
The lenses lock together and snap apart with a simple twisting motion, allowing for easy lamp changes and quick lens resequencing. A rugged vibration-resistant, thick-filament wedge lamp fills each lens with light, providing excellent optical performance.
Wire connections are made through a 2-piece terminal block. The MicroStat is designed to work with PLC outputs including “Triacs”.
An optional sound module can be installed in the top position of any MicroStat as one of the 5 units. The Sound Module Kit consists of a slotted grille and board-mounted piezoelectric horn. The sounder plugs directly into the wedge socket.


SPECIFICATIONS

Mount Surface
  3/4″ Pipe
Voltage 24VAC/VDC
  120VAC
Operating Current .2 Amps in 1-High
  .4 Amps in 2-High
  .6 Amps in 3-High
  .8 Amps in 4-High
  1.0 Amps in 5-High
Light Source/Lamp Style Wedge Lamp #655
Lamp Life 7,000 Hours
Operating Temperature Minimum 32 °F
Operating Temperature Maximum 104 °F
Enclosure Rating Type 4X
Dome Colors Amber
  Blue
  Clear
  Green
  Red
Operating Temperature Range 32°F to 104°F
Net Weight
1-high 0.40 lb
2-high 0.55 lb
3-high 0.65 lb
4-high 0.85 lb
5-high 1 lb
Shipping Weight
1-high 0.70 lb
2-high 0.85 lb
3-high 1.30 lb
4-high 1.50 lb
5-high 1.65 lb

Información adicional

Dimensiones - × - × - cm
