Descripción
FEATURES

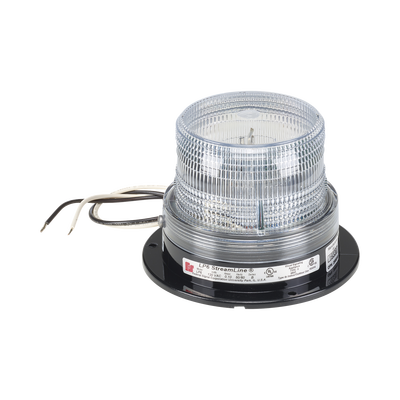

Model LP6 is a very compact, high power strobe light designed for applications where space is critical. At 3-5/8″ high, this strobe light is ideal for forklift applications where head room is important. The LP6 also mounts easily to small control panels.
The LP6 features a two joule power supply that works in multiple voltages from 12-48VDC to 120VAC. Modular construction incorporates a powerful flash tube and vibration resistant circuit board.
The LP6 housing utilizes a unique screw-on lens for easy relamping and service. This economical light does not sacrifice power for price or size.
SPECIFICATIONS
| Mount | Surface |
| Voltage | 12-48VDC |
| 120VAC | |
| Operating Current | 0.44-0.10 Amps from 12-48VDC |
| 0.10 Amps at 120VAC | |
| Light Source/Lamp Style | Strobe Tube |
| Lamp Life | 7,000 Hours |
| Factory Default Setting | 65 to 95 |
| Peak Candela | 175,000 |
| Effective Candela | 51.5 |
| Operating Temperature Minimum | -31 °F |
| Operating Current | 150 °F |
| Enclosure Rating | Type 4X |
| Dome Colors | Amber |
| Blue | |
| Clear | |
| Green | |
| Red | |
| Net Weight | 0.65 lb |
| Shipping Weight | 0.85 lb |
| Height | 3.630 in |
| Diameter | 5.060 in |
