FEATURES

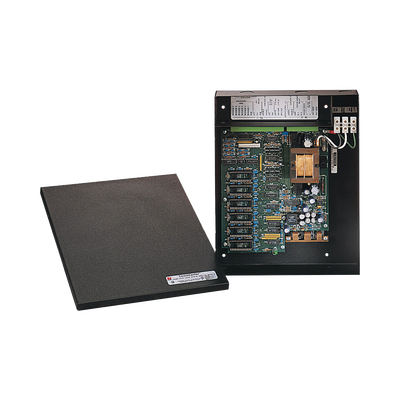

CommCenter® Model 300MB broadcasts pre-recorded voice messages, melodies, tones and signals over SelecTone® and public address systems. Model 300MB replaces outdated loop tape units with superior, high-quality audio playback. Model 300MB is remotely activated via contact closures.
Melodies, voice messages, tones and signals are available, including the pre-recorded CommCenter Standard Library and optional custom recorded messages. Units can be interconnected for greater message capacity.
CommCenter’s digital messaging capability is ideal for emergency evacuation announcements. Clear, concise, predetermined instructions can be broadcast over a SelecTone or public address system. The CommCenter’s pre-recorded melodies can convey the status of a process or machine without interrupting the flow of production in surrounding areas. Voice messages in any language can alert operators to emergency situations.
The CommCenter offers quality and versatility to public address systems that broadcast repetitive, prerecorded messages.
SPECIFICATIONS
| Voltage | 24VDC |
| 120VAC 50/60Hz | |
| 240VAC 50/60Hz | |
| Mount | Surface |
| Operating Current | 0.80 Amps at 24VDC |
| Operating Current | 0.20 Amps at 120VAC |
| Operating Current | 0.10 Amps at 240VAC |
| Operating Current | 0.09 Amps at 24VDC |
| 0.05 Amps at 120VAC | |
| 0.02 Amps at 240VAC | |
| Operating Temperature Minimum | 32 °F |
| Operating Temperature Maximum | 140 °F |
| Tone Output | 10Vrms (25 Ohm Maximum) |
| 25Vrms (40 Ohm Maximum/15-watt) | |
| Audio Input – Input Voltage | 5K Ohms |
| Audio Input – Input Impedance | 1V P-P (Max) |
| Signal To Noise Ratio | (<% 1.5 THD) Chip Input 67dBa |
| Signal Frequency Response | 250Hz to 3.4KHz |
| Enclosure Rating | Type 1 |
| Height | 11.570 in |
| Width | 9.410 in |
| Depth | 2.270 in |
| General Text | 5.50 lb |
| Shipping Weight | 6.60 lb |
