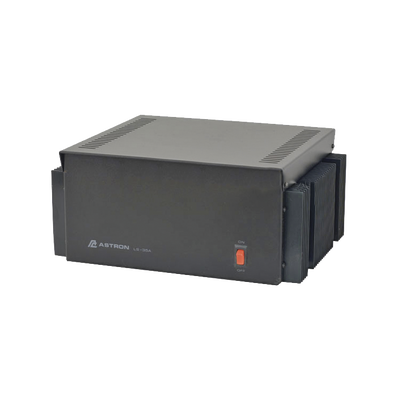

ASTRON Power Supply, Internally Adjustable to 220 Volts

Descripción

Special features:
• Solid state electronically regulated
• Fold-back current limiting; protects power supply from excessive current & continuous shorted output
• Crowbar over voltage protection
• Maintain regulation & low ripple at low line input voltage
• Heavy duty heat sink
• Chassis mount fuse
• Three conductor power cord
• Made in U.S.A.

Performance specifications:
• Input voltage: 105-125 Vac.
• Output voltage: 28 Vdc ± 0.05 volts (internally adjustable: 22-32 Vdc).
• Ripple less than 5mv peak to peak (full load & low line).
• Continuous duty: 27 amps.
• ICS: 35 amps.
• Dimensions:  6 x 13.75 x 12 .13 in.
• Shipping weight: 49 lbs.
